APP 02 – Architectural Panel with Concealed Brackets
Engineered for precision and performance, the APP 02 panel is built from high-grade 5000-series aluminum, with a solid 3.2 mm thickness that delivers exceptional strength and stability….. APP 02 – Architectural Panel with Concealed Brackets
Engineered for precision and performance, the APP 02 panel is built from high-grade 5000-series aluminum, with a solid 3.2 mm thickness that delivers exceptional strength and stability. Designed to meet the demands of complex architectural applications, it’s ideal for projects where clean lines, detail, and durability are non-negotiable.

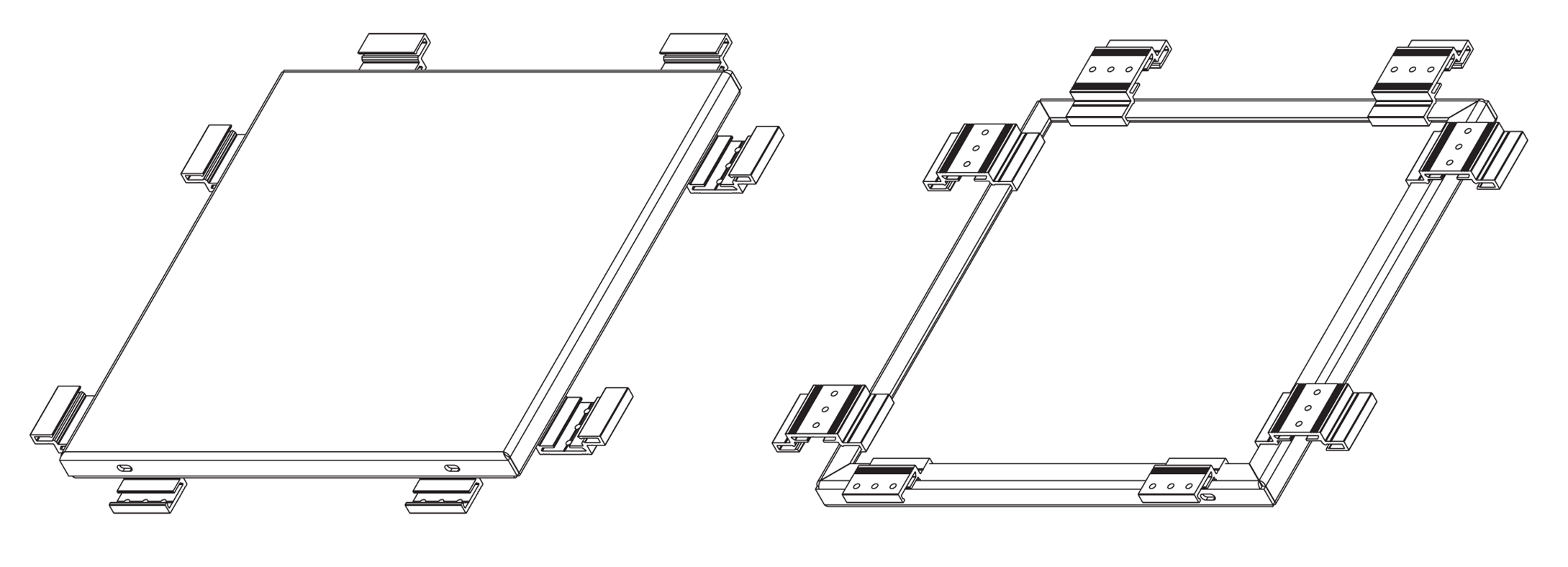

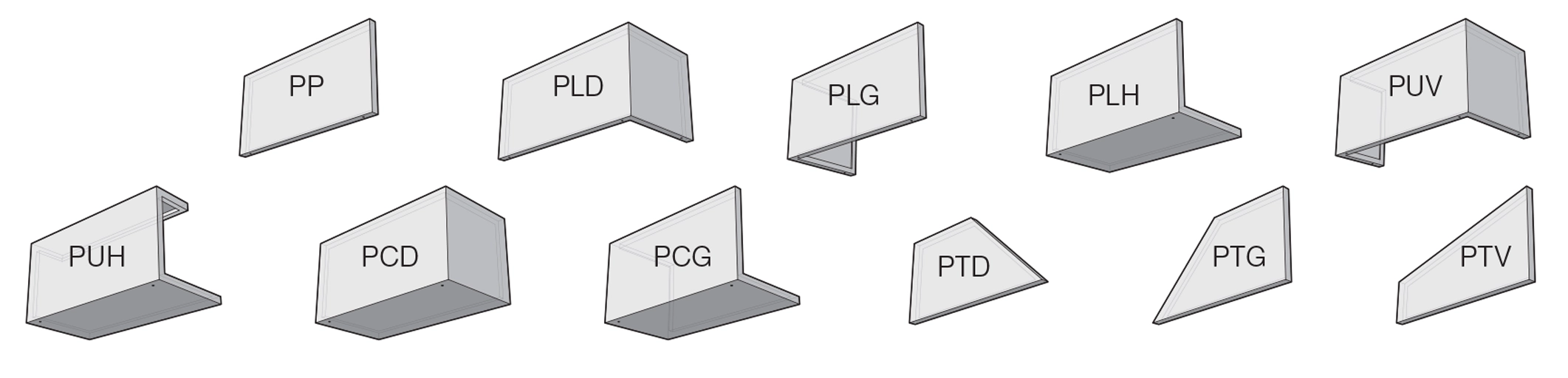

The system is completed with discreet 6000-series aluminum extrusions, creating a seamless appearance with hidden fasteners that add to both the structural integrity and modern aesthetic. Whether you’re designing bold facades or refined accents, the APP 02 brings sleek sophistication and robust reliability to the forefront.Standard Folds
General Specifications - Engineered for quick and efficient installation, saving time on site
- Built from non-combustible materials for enhanced safety
- Highly durable and 100% recyclable at the end of its life cycle
- Finished with an eco-friendly, solvent-free powder coating, offering long-lasting color stability and resistance to fading
- Perimeter extrusion deflection under service loads limited to L/180
- Panel deflection under service loads limited to L/60
- Constructed from 3.2 mm (0.125”) thick 5000 series aluminum for the main panel
- Reinforced with 3.2 mm (0.125”) thick 6000 series aluminum perimeter extrusions for added structural integrity
- Coated using an electrostatic powder finish that meets AAMA 2604 and 2605 performance standards
- Wide range of custom color options available to suit any architectural vision

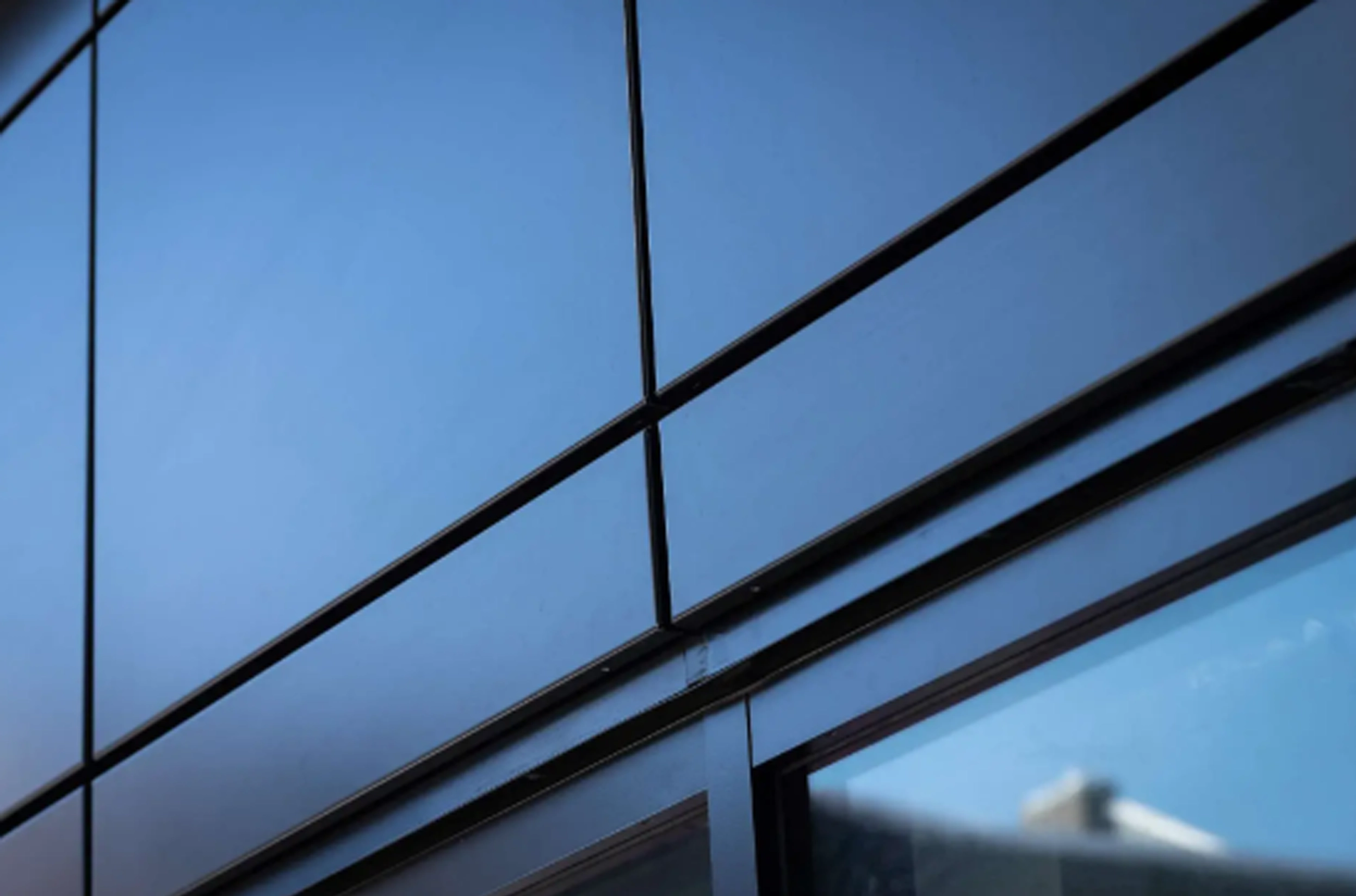

- Exterior cladding for commercial, institutional, or residential buildings
- Interior use as decorative wall features or design elements
- *Note: For specific project suitability or custom details, consult with our technical team.

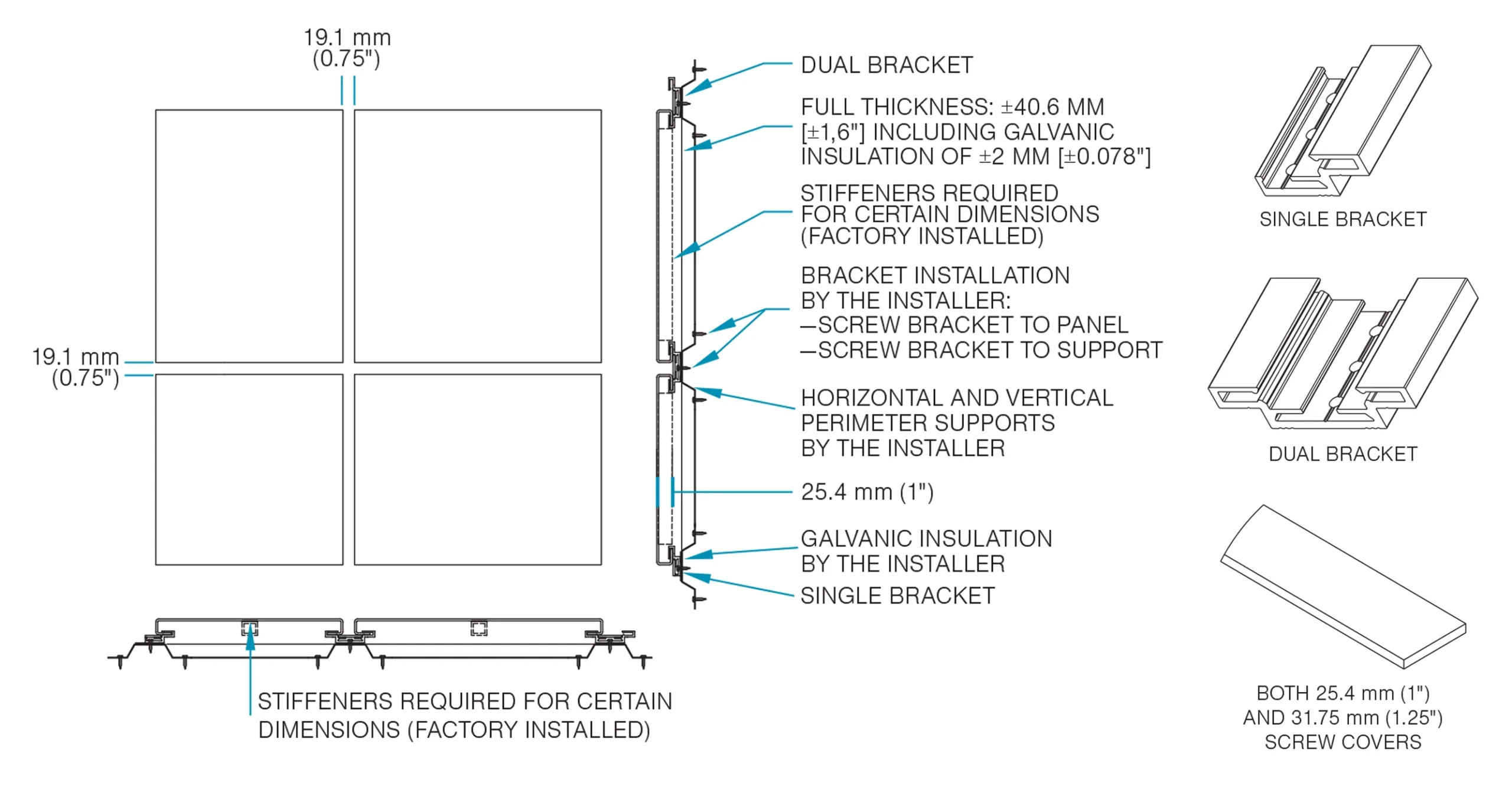

Technical Details Panel Dimensions: - Rectangular Panels: Available from 4” x 16” (101.6 mm x 406.4 mm) up to 55” x 140” (1397 mm x 3531 mm)
- Square Panels: Ranging from 16” x 16” (406.4 mm x 406.4 mm) to 55” x 55” (1397 mm x 1397 mm)

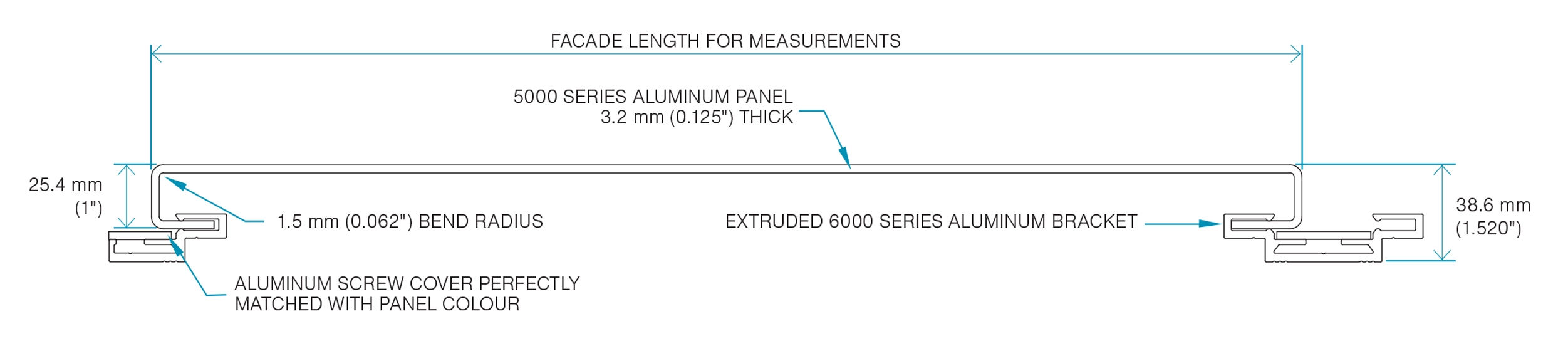

- Profile Depth & Assembly:
- Panel Thickness: 1” (25.4 mm)
- Total Assembly Depth: 1.520” (38.6 mm)
- Joint Width: 0.75” (19.1 mm)
- Dimensional precision of ±0.015” (±0.4 mm)
- Squareness maintained within 1/1000 of total panel size
Elevate Your Project with Premium Aluminum Panels
When performance and appearance matter, aluminum panels finished with electrostatic powder coating—meeting AAMA 2604 and 2605 standards—deliver on every front. At the heart of our aluminum siding line is our custom-built powder coating facility, designed to apply one of the most environmentally friendly and durable finishes available today. This in-house capability ensures consistent quality, rich colour depth, and long-lasting protection against the elements. Endless Colour Possibilities From anodized-style finishes to specialty effects and carefully curated palettes, we offer full customization to match your vision. Whether you’re aiming for bold, subtle, or one-of-a-kind textures, our partners can formulate powders tailored precisely to your design goals. If you can imagine it, we can match it.
